Rudder Collection

Rudder 25

Rudder 25 is designed for use on dinghy and catamarans 17'-21'

rudder 25 blade 1
Blade 1
Profile NACA
Weight 1.5 kg
rudder 25 blade 1A
Blade 1A
Profile STEINER
Weight 1.5 kg
rudder 25 blade 2
Blade 2
Profile NACA
Weight 1.7 kg
rudder 25 blade 7
Blade 7
Profile NACA
Weight 1.9 kg
rudder 25 blade FD
Blade FD
Profile STEINER
Weight 2.7 kg

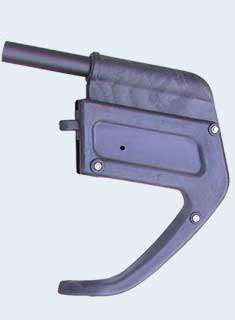

Rudder box 25 assembly for 25 mm Blade thickness

Rudder box 25 assembly for 25 mm Blade thicknessRudder box 25 assembly for 25 mm Blade thickness

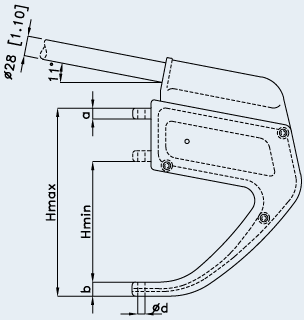

HmaxHminØ dabm
mminmminmminmminmminkg
R 25/826510.431706.6985/16150.59200.791
R 25/101025/64



The distance between the upper and lower gudgeon can change from Hmin up to Hmax
